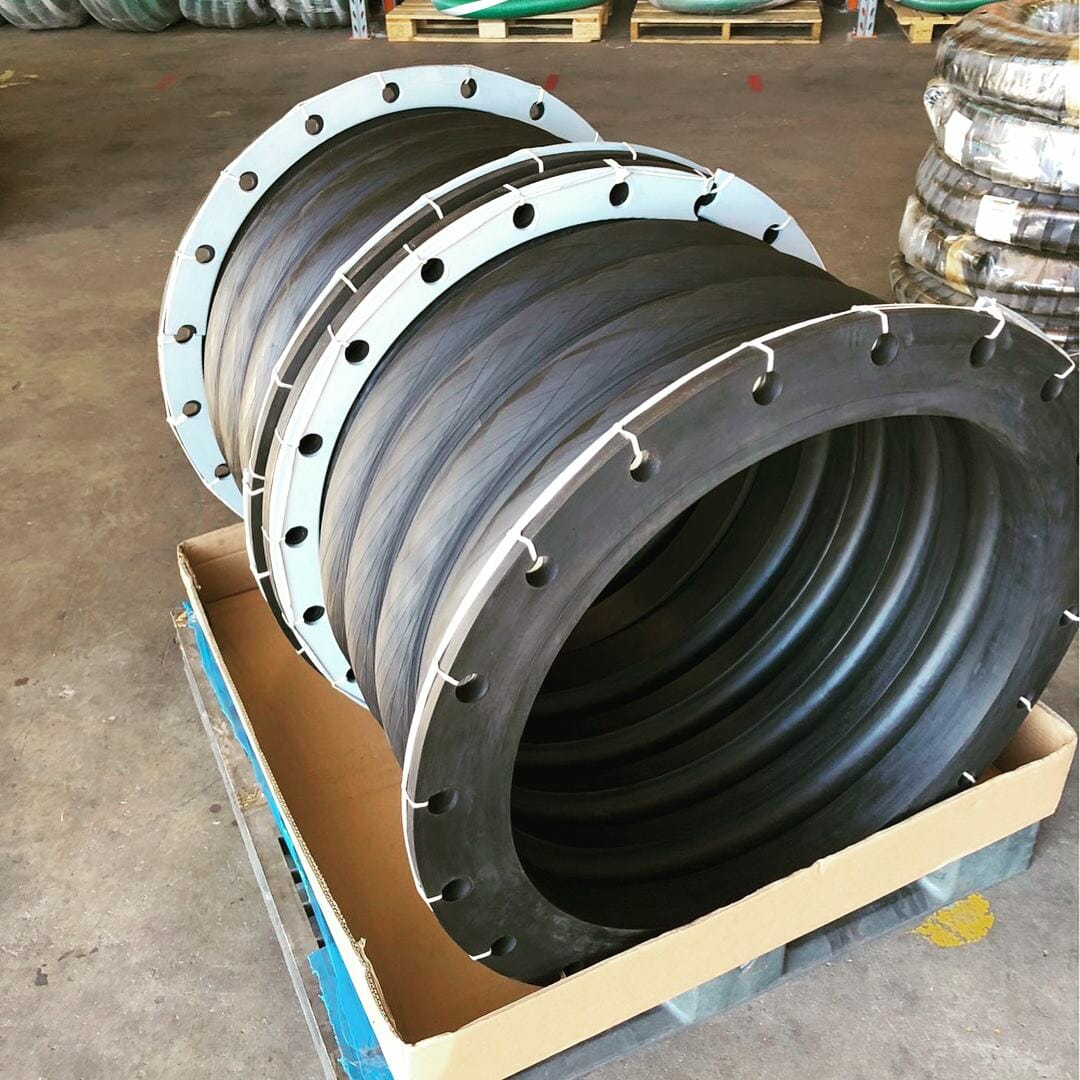

rubber joints

Complete Guide: Installing & Maintaining Rubber Expansion Joints

Installing rubber expansion joints correctly is crucial for the longevity and efficiency of your piping systems. These components play a vital role in absorbing movements and vibrations, ensuring your system operates smoothly. However, a misstep in installation can lead to premature failure, unnecessary downtime, and increased maintenance costs.

That's why I'm here to guide you through the essential steps and tips for a successful rubber expansion joint installation. From ensuring compatibility with your system's requirements to proper alignment and anchoring, I'll cover what you need to know to avoid common pitfalls and achieve optimal performance. Let's dive in and make sure your expansion joints are installed correctly from the get-go.

Benefits of Rubber Expansion Joints

When I delve into the world of piping systems, it's impossible not to highlight the pivotal role played by rubber expansion joints. Their capacity to enhance system performance is unmatched, ensuring that operations run smoothly and efficiently. In this section, I'm going to unpack a couple of critical benefits that these components bring to the table, namely their durability and flexibility.

Durability

One of the first things that caught my attention about rubber expansion joints is their remarkable durability. Constructed from various types of rubber, each tailored to withstand specific environmental conditions, these joints offer resilience against physical and chemical wear. The choice of material, from EPDM to Neoprene, plays a crucial role in extending the lifespan of these components by ensuring compatibility with the medium passing through the pipelines and the surrounding operational conditions. This compatibility is key not just for preventing premature failures but also in minimizing maintenance costs and downtime. By selecting the appropriate rubber material that can resist acids, alkalis, oils, and high temperatures, the longevity of the piping system is significantly bolstered.

Flexibility

Another standout benefit that rubber expansion joints offer is their unparalleled flexibility. This characteristic is invaluable in managing and absorbing the thermal expansion, contractions, and vibrations within piping systems. Unlike rigid components, these flexible joints adapt to movements caused by thermal changes, ensuring that stress on the piping and related structures is substantially reduced. Moreover, their capacity to accommodate misalignment and settle noise and vibration issues underscores their critical role in maintaining the integrity and smooth operation of the entire system. This adaptability isn't just about preventing structural damage; it's also about enhancing the operational efficiency of the system by ensuring uninterrupted flow and reducing the risk of leaks or breaks.

In essence, the durability and flexibility of rubber expansion joints contribute significantly to the long-term reliability and efficiency of piping systems. Their ability to withstand adverse conditions while accommodating movement ensures they remain an indispensable component for a wide range of industrial applications.

Types of Rubber Expansion Joints

When it comes to selecting the right rubber expansion joint for your piping system, understanding the different types available is essential. Each type offers unique properties that make them suitable for various applications and environments. Let's dive into the specifics of each kind to guide your choice effectively.

Molded Rubber Expansion Joints

Molded rubber expansion joints are known for their robust construction and are manufactured in a single, continuous piece. This design minimizes potential failure points, making them an excellent choice for applications involving high pressure and temperature fluctuations. EPDM and Neoprene are common materials used, known for their durability and resistance to environmental factors. Molded joints are particularly beneficial for systems requiring a high degree of flexibility and noise reduction.

Fabric Reinforced Rubber Expansion Joints

Fabric reinforced rubber expansion joints incorporate layers of fabric within the rubber, enhancing their strength and resistance to pressure and mechanical stress. They are particularly suited for handling movements and misalignments in piping systems while providing excellent noise and vibration dampening. These joints can adapt to various chemical conditions depending on the rubber and fabric materials used, making them versatile for different industrial applications.

PTFE Lined Rubber Expansion Joints

PTFE lined rubber expansion joints offer the chemical resistance of PTFE with the flexibility and resilience of rubber. This combination is ideal for handling corrosive media at varying temperatures while maintaining a tight seal. They're often used in industries such as chemical processing, where both chemical compatibility and the ability to absorb movements are critical. The PTFE lining ensures that even aggressive substances do not compromise the joint's integrity.

Viton Rubber Expansion Joints

Viton rubber expansion joints stand out for their exceptional resistance to high temperatures and chemicals, including oils and fuels. This makes them suitable for applications in petrochemical, pharmaceutical, and food processing industries where such conditions are prevalent. Viton material can handle continuous exposure to aggressive chemicals without degrading, ensuring longevity and reliability in challenging environments.

Nitrile Rubber Expansion Joints

Nitrile rubber expansion joints are designed to excel in oil-rich environments. They display an outstanding resistance to oils and solvents, making them an ideal choice for petroleum and oil refining industries. Besides their chemical resistance, nitrile joints offer good flexibility and are effective in reducing vibration and noise, which contributes to the overall efficiency and safety of the piping system.

Butyl Rubber Expansion Joints

Butyl rubber expansion joints are characterized by their excellent impermeability to gases and resistance to weathering, ozone, and chemicals, including acids and alkalis. Their key feature is the ability to maintain their flexibility and mechanical properties over a wide temperature range. These qualities make butyl rubber joints a preferred option for HVAC applications and services involving gas transmission where leakage must be minimized.

Each of these rubber expansion joints serves a unique purpose in industrial piping systems, catering to specific requirements regarding flexibility, durability, and medium compatibility. It's crucial to assess the conditions your system will face to make an informed decision on the right type of joint to implement.

Factors to Consider Before Installing Rubber Expansion Joints

When it comes to installing rubber expansion joints, diving straight into the installation isn't the best approach. I've learned through experience that careful consideration of several factors is crucial for a successful installation. These elements ensure that the expansion joints serve their intended purpose efficiently, safeguarding the piping system from various stresses and prolonging its lifespan. Let's delve into some of these key factors to keep in mind.

Operating Conditions

Understanding the specific operating conditions of your piping system is paramount before selecting and installing rubber expansion joints. This includes recognizing the maximum and minimum temperatures the system will face, as well as the range of pressure it needs to withstand. For instance, if the instantaneous pressure of the pipelines is higher than the working pressure, choosing an expansion joint with a higher working pressure rating is necessary to handle sudden surges effectively. Here's a simplified guide to choosing the correct working pressure based on the pipeline's instantaneous pressure:

Instantaneous Pressure (Mpa) Recommended Working Pressure (Mpa)
10 16
16 25

Moreover, the type of medium flowing through the system significantly influences the choice of expansion joint. Whether it's exposure to acids, alkalis, oil, high temperatures, or other special materials, the expansion joint selected must be designed to withstand these conditions without compromising its integrity or functionality.

Size and Compatibility

Selecting the right size and compatibility of rubber expansion joints is a critical step that shouldn't be overlooked. The dimensions of the expansion joints must exactly match the flange sizes of the pipes they are connecting. This ensures a tight and secure fit, preventing leaks and allowing for optimal performance.

Compatibility extends beyond physical dimensions; it also includes material compatibility. The rubber material must be suitable for the medium it will come into contact with, as well as capable of withstanding the operating temperature and pressure of the system. For example, EPDM rubber offers excellent resistance to water and steam, making it ideal for certain applications, while Viton is better suited for high-temperature environments and exposure to chemicals.

Installation Location

Choosing the correct installation location for rubber expansion joints within the piping system plays a crucial role in maximizing their effectiveness. Ideally, these should be positioned close to the system's main anchor point to efficiently absorb expansions and contractions. This positioning reduces stress on the piping and the expansion joints themselves, enhancing the overall durability and reliability of the system.

Additionally, it's important to ensure that the piping system alignment meets the installation requirements of the rubber expansion joints. Any misalignment greater than 1/8" needs to be corrected prior to installation to prevent undue stress and potential failure of the joint. Proper support of the piping system and the use of anchors upstream and downstream of the expansion joints are also vital to prevent the joints from carrying the weight of the pipe, which could lead to overextension and failure.

Step-by-Step Guide to Installing Rubber Expansion Joints

Installing rubber expansion joints correctly is critical to ensure the longevity and functionality of your piping system. I've gathered years of experience and insights into a comprehensive guide that'll walk you through the installation process. This guide aims to arm you with the knowledge needed to avoid common pitfalls and ensure your system operates efficiently.

Pre-Installation Preparation

Before diving into the actual installation, it's vital to prepare adequately. First, inspect the rubber expansion joints to ensure they're free from any damage or defects. I always make sure that all surfaces are clean and that there are no sharp edges on the steel flanges, as these can compromise the installation. One crucial point I've learned is that no gaskets are required for the installation of rubber expansion joints, simplifying the process. Additionally, checking the pressure to confirm if control rods are needed is a step you shouldn't skip. This phase is all about making sure everything is set for a smooth installation process, minimizing the likelihood of issues arising during or after installation.

Mounting the Expansion Joint

Mounting the expansion joint correctly is critical to its performance. The key here is to ensure that the flange connection type is compatible. The two primary flange types to connect with rubber expansion joints are Valve flanges and RF flanges. I've found it beneficial to apply a thin film of graphite dispersed in glycerin or water to the face of the rubber flanges before installation. This practice prevents the rubber from adhering to the metal flange, making future removal or adjustments less of a hassle. It's also essential to avoid any unnecessary compression or elongation of the joint during installation; this can dramatically decrease its effectiveness and lifespan.

Securing the Joints

Once the expansion joint is in place, securing it properly is the next crucial step. Solid anchoring is required to prevent excessive movements that could damage the expansion joints. Pay particular attention to pipelines that change direction, as expansion joints should be located as close as possible to anchor points. Additionally, I cannot overstate the importance of proper alignment. Misalignment can reduce the rated movements of the expansion joint and induce severe stress, shortening its service life. Pipe guides are an effective solution to keep the pipe aligned and prevent undue displacement.

Remember, continual support of the expansion joint is necessary until it's fully bolted into place. This ensures the joint remains in the correct position, mitigating the risk of misalignment or damage during the final steps of the installation process.

Maintenance Tips for Rubber Expansion Joints

When it comes to ensuring the longevity and functionality of rubber expansion joints in piping systems, maintenance can't be overlooked. Indeed, the key to avoiding costly repairs or replacements lies in a proactive approach to upkeep. Let's delve into some essential maintenance practices that can help keep these critical components in top condition.

Regular Inspections

I can't stress enough how important regular inspections are for the health of rubber expansion joints. Through my experience, I've found that a simple visual check can uncover early signs of wear or damage that, if left unattended, could lead to severe problems. Visual inspections should focus on identifying cracking, blistering, or any form of deterioration on the surface of the expansion joint.

Another aspect to keep an eye on is the alignment and positioning of the joints. Even slight misalignments can introduce stresses that the joint wasn't designed to handle, accelerating wear. By ensuring everything is correctly aligned, you're taking a significant step toward extending the life of your rubber expansion joints.

Cleaning and Lubrication

Maintaining cleanliness and proper lubrication are pivotal for the smooth operation of rubber expansion joints. Dirt, debris, and particulates can accumulate on the surface, leading to abrasion and, over time, deterioration of the rubber material. Hence, cleaning should be part of your regular maintenance schedule. A soft cloth dampened with a mild cleaner is usually sufficient for wiping down the external surfaces without causing damage.

Lubrication, particularly at the flange connections, is another critical aspect that requires attention. Based on my experiences, applying a thin film of graphite dispersed in glycerin or water to the flange faces before installation is a standout practice. This type of lubricant does wonders in preventing the rubber from sticking to the metal flanges, ensuring that the joint can be easily removed if necessary without incurring damage. Remember, using the right type of lubricant is crucial, as incorrect selections can degrade the rubber or impair its performance.

Regular upkeep, through inspections, cleaning, and the thoughtful application of lubricants, plays a crucial role in the operational integrity of rubber expansion joints. By adopting these maintenance best practices, you're not only safeguarding the functionality of your piping system but also optimizing its lifespan and reliability.

Conclusion

I've walked you through the crucial steps of installing rubber expansion joints, emphasizing the importance of regular maintenance. Remember, the key to ensuring their longevity and functionality lies in diligent inspections, thorough cleaning, and proper lubrication. By adopting these maintenance best practices, you're not just protecting your investment but also ensuring the reliability and efficiency of your piping systems. Let's keep our systems running smoothly by giving our rubber expansion joints the care they deserve.
